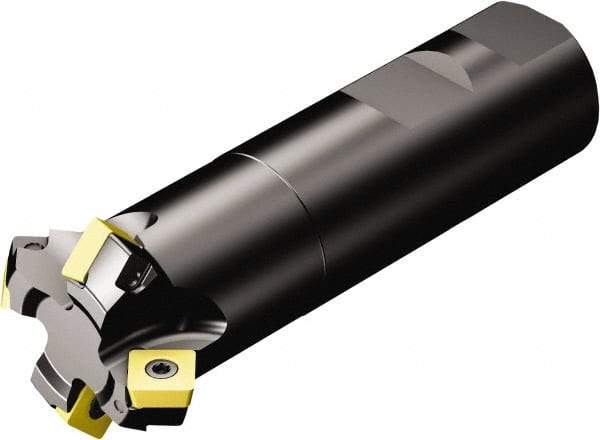

Sandvik Coromant - 1.02" Cut Diam, 1" Arbor Hole, 5.47mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 4 Inserts, 495-09T3M-XL Insert, Right Hand Cut, 4 Flutes, Through Coolant, Series CoroMill 495
Item #: 49335532
Brand: Sandvik Coromant
Model #: 6536282
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0200 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 45 |
| Overall Height (Inch) | 3-3/4 |
| Overall Height (Decimal Inch) | 3.7500 |
| Insert Compatibility | 495-09T3M-XL |
| Series | CoroMill 495 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.47 |
| Maximum Depth of Cut (Decimal Inch) | 0.2153 |
| Number of Cutter Inserts | 4 |
| Cutter Style | A495..Mxx |
| Maximum Body Diameter (Decimal Inch) | 0.9889 |
| Maximum RPM | 8000 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 495-09T3M-XL |
| Toolholder Material | Steel |
| Complete Insert Compatibility | 495-09T3M-XL |
| Insert Holding Method | Screw |
| Head Length (mm) | 37.31 |
| Head Length (Decimal Inch) | 1.4690 |
| Overall Length (mm) | 95.25 |
| Overall Length (Inch) | 3-3/4 |
| Overall Length (Decimal Inch) | 3.7500 |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (Decimal Inch) | 1.020 |
| Maximum RPM | 8000 |
| Maximum Cutting Diameter (mm) | 37.31 |
| Maximum Cutting Diameter (Decimal Inch) | 1.469 |
| Included Angle | 45 |
| Minimum Cutting Diameter (mm) | 25.91 |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Shank Length (mm) | 57.94 |
| Shank Length (Decimal Inch) | 2.2811 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.000 |
| Weldon Flat | Yes |
| Toolholder Style | A495..Mxx |
