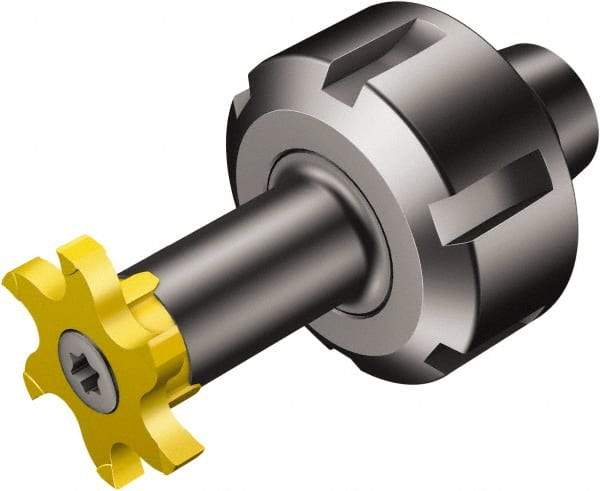

Sandvik Coromant - CoroMill 327 ER16 Collet Shank Milling Tip Insert Holder & Shank - 16.25mm Projection, 0.3543" Neck Diam, 9mm Nose Diam, 48.35mm OAL, Steel 392.ER327 Tool Holder
Item #: 49335524
Brand: Sandvik Coromant
Model #: 6073868
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroMill 327 |
| Shank Type | Collet |
| Shank Taper Size | ER16 |
| Projection (mm) | 16.25 |
| Projection (Decimal Inch) | 0.6398 |
| Neck Diameter (Decimal Inch) | 0.3543 |
| Nose Diameter (mm) | 9.00 |
| Nose Diameter (Decimal Inch) | 0.3543 |
| Toolholder Material | Steel |
| Overall Length (mm) | 48.35 |
| Overall Length (Decimal Inch) | 1.9035 |
| Head Length (Decimal Inch) | 0.6398 |
| Collet Series | ER16 |
| Maximum Diameter (mm) | 9.00 |
| Maximum Diameter (Decimal Inch) | 0.3543 |
| Shank Material | Steel |
| Toolholder Style | 392.ER327 |
