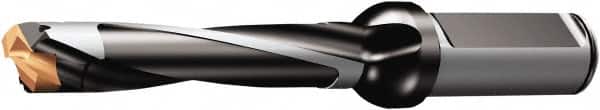

Sandvik Coromant - 12.5 to 12.99mm Diam, 5.18992xD, 66.95mm Max Depth, 16mm Shank Diam, 130mm OAL, Replaceable Tip Drill - 870-1290-11-PM Insert, 11 Seat Size, 870..L-5 Toolholder, Series CoroDrill 870
Item #: 49335284
Brand: Sandvik Coromant
Model #: 6035643
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroDrill 870 |
| Minimum Drill Diameter (mm) | 12.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4921 |
| Maximum Drill Diameter (mm) | 12.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5114 |
| Drill Depth by Diameter Ratio | 5.18992xD |
| Maximum Drill Depth (Decimal Inch) | 2.6358 |
| Maximum Drill Depth (mm) | 66.95 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | 870-1290-11-PM |
| Insert Seat Size | 11 |
| Toolholder Style | 870..L-5 |
| Through Coolant | Through Coolant |
| Shank Type | Flange |
| Tip Length (mm) | 1.98 |
| Tip Length (Decimal Inch) | 0.0780 |
| Body Length (mm) | 69.00 |
| Body Length (Decimal Inch) | 2.7165 |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1181 |
| Toolholder Material | Steel |
| Shank Length (mm) | 49.98 |
| Shank Length (Decimal Inch) | 1.9677 |
