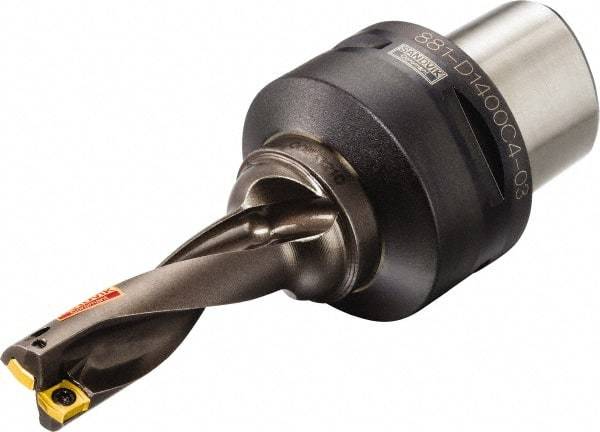

Sandvik Coromant - 72mm Max Drill Depth, 3xD, 23mm Diam, Indexable Insert Drill - 2 Inserts, C4 Modular Connection Shank
Item #: 49334170
Brand: Sandvik Coromant
Model #: 5962358
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 23.00 |
| Drill Diameter (Decimal Inch) | 0.9055 |
| Maximum Drill Depth (mm) | 72.00 |
| Maximum Drill Depth (Decimal Inch) | 2.8347 |
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9055 |
| Maximum Drill Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 150.00 |
| Overall Length/Projection (Decimal Inch) | 5.9055 |
| Insert Compatibility | 881-04 03 08M-C-GM1; 881-04 03 08M-P-GM1 |
| Flute Length (mm) | 69.00 |
| Flute Length (Decimal Inch) | 2.7165 |
| Body Length (Decimal Inch) | 4.9264 |
| Body Length (mm) | 125.13 |
| Shank Length (mm) | 24.87 |
| Shank Length (Decimal Inch) | 0.9792 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 1.00 |
