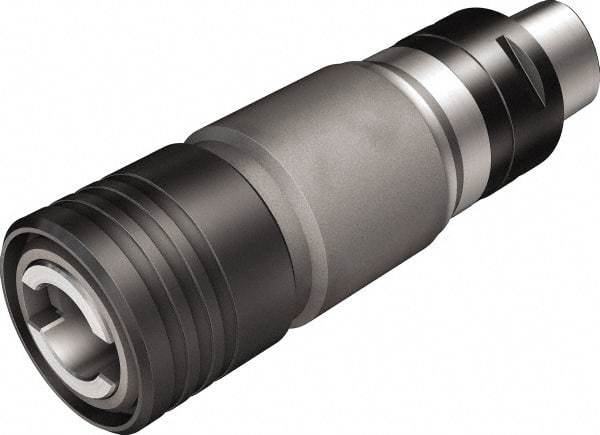

Sandvik Coromant - 168mm Max Drill Depth, 4xD, 41mm Diam, Indexable Insert Drill - 2 Inserts, C5 Modular Connection Shank
Item #: 49334089
Brand: Sandvik Coromant
Model #: 5765616
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 41.00 |
| Drill Diameter (Decimal Inch) | 1.6142 |
| Maximum Drill Depth (mm) | 168.00 |
| Maximum Drill Depth (Decimal Inch) | 6.6142 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.6142 |
| Maximum Drill Diameter (mm) | 42.50 |
| Overall Length/Projection (mm) | 248.00 |
| Overall Length/Projection (Decimal Inch) | 9.7638 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (mm) | 164.00 |
| Flute Length (Decimal Inch) | 6.4567 |
| Body Length (Decimal Inch) | 8.5563 |
| Body Length (mm) | 217.33 |
| Shank Length (mm) | 30.68 |
| Shank Length (Decimal Inch) | 1.2077 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.75 |
