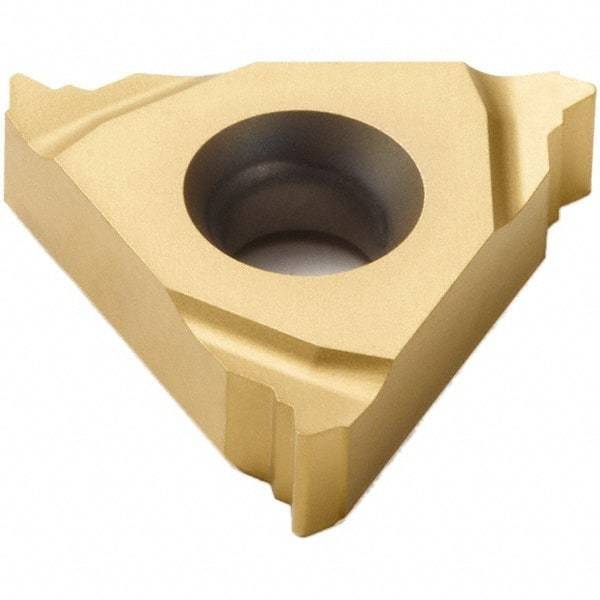

Seco - 16ER External Right Hand UNJ Laydown Threading Insert - Grade CP200, TiAlN Coated Carbide, 3/8" Inscribed Circle
Item #: 49328834
Brand: Seco
Model #: 04990
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | UNJ |
| Material Grade | C5 |
| Manufacturer's Grade | CP200 |
| External Pitch (mm) | 1 |
| Pitch (mm) | 1.00 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1366 |
| Included Angle of Threading Tip | 60 |
| Coating | TiAlN |
| Coating Process | PVD |
| Coating Process | PVD |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.650 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.325 |
| Number of Teeth Per Side | 1 |
