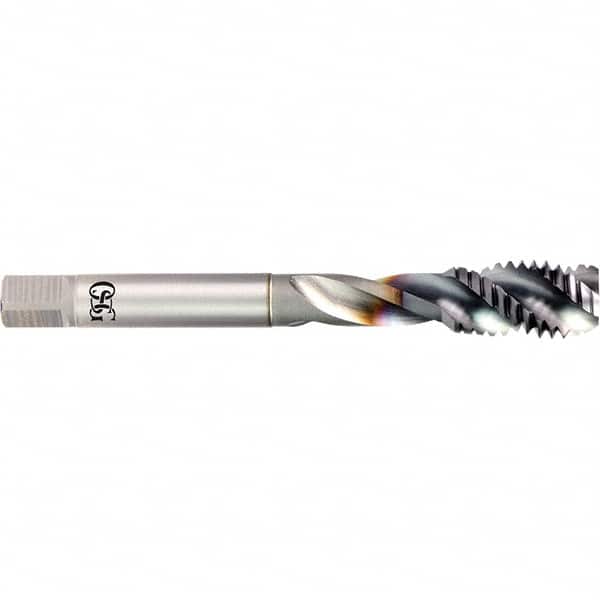

OSG - M17x1.00 Metric Fine 3 Flute 6H Semi-Bottoming Spiral Flute Tap - Powdered Metal, V Finish, 100mm OAL, Right Hand Flute, Right Hand Thread, D5, Series 16500
Item #: 49196173
Brand: OSG
Model #: 1650006308
Exact Tooling IR#: 04
Features and Benefits
Semi-bottoming chamfers are used for blind holes. They have 3 to 3-1/2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
V is a multi-layered TiCN coating that is harder and has greater wear resistance than TiN. It is used for applications in cast iron, steel, stainless steel, nickel alloys and aluminum. V is a proprietary coating exclusive to OSG Tap and Die, Inc.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M17x1.00 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 6H |
| Thread Limit | D5 |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | V |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 100.00 |
| Helix Angle Range | 15 to 45 |
| Thread Standard | Metric Fine |
| Series/List | 16500 |
| Tapping Depth (mm) | 55.00 |
