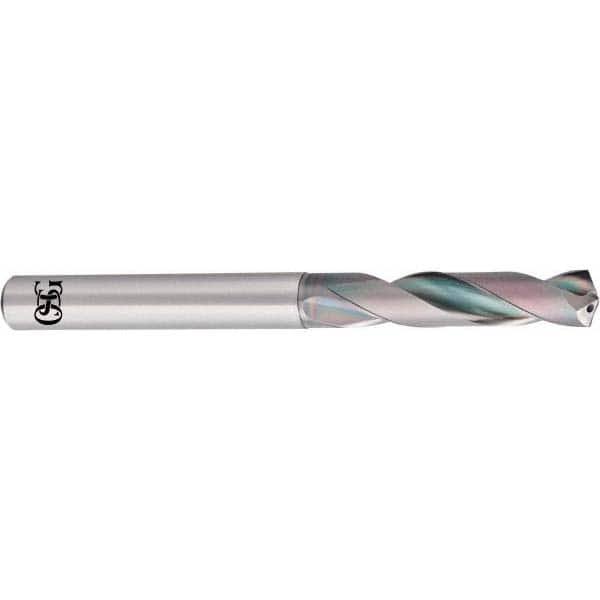

Screw Machine Length Drill Bit: 0.4062″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 6500
Item #: 48821276
Brand: OSG
Model #: 650040511
Product Specifications
| Drill Bit Size (Inch) | 13/32 |
| Drill Bit Size (mm) | 10.32 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Drill Bit Size (Decimal Inch) | 0.4062 |
| Overall Length (mm) | 113.00 |
| Overall Length (Decimal Inch) | 4.4488 |
| Series | 6500 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Point Type | R-Thinned |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0 to -0.027 mm |
| Flute Length (mm) | 52.00 |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Drill Bit Size Range (mm) | 9.50 to 11.00 |
