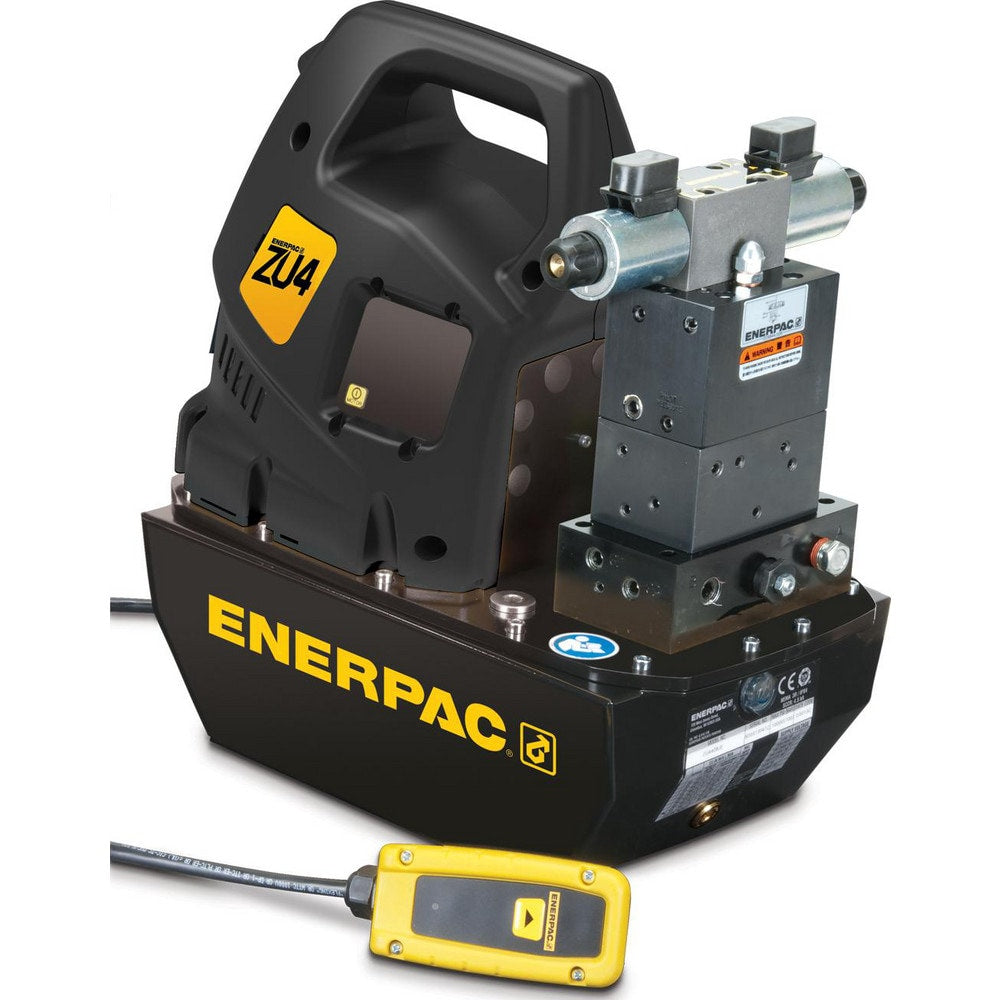

Power Hydraulic Pumps & Jacks; Type: Electric Hydraulic Pump; 1st Stage Pressure Rating: 10000; 2nd Stage Pressure Rating: 10000; Pressure Rating (psi): 10000; Oil Capacity: 2 gal; Actuation: Double Acting; Cylinder Operating Function: Advance, Hold and R
Item #: 09520222
Brand: Enerpac
Model #: ZU4408SB
Product Specifications
| Type | Electric Hydraulic Pump |
| 1st Stage Pressure Rating | 10000 |
| 2nd Stage Pressure Rating | 10000 |
| Pressure Rating (psi) | 10000 |
| Oil Capacity | 2 gal |
| Actuation | Double Acting |
| Cylinder Operating Function | Advance, Hold and Retract |
| Valve Type | Four-Way; Three-Position |
| Adjustable Relief Valve | Yes |
| Includes | LCD Display |
| Overall Length | 25.00 |
| Overall Width | 13 |
| Overall Height | 20.5 in |
| Usable Oil Capacity | 2 gal |
| Additional Information | Sound Level: 85 to 90 dBA; Series: ZU; Thread: 1/2 in NPTF; Motor Hertz: 50/60 Hz; Duty Cycle: Intermittent; Operation Type: Solenoid Valve with Pendant; Motor Phase: 1 ph; Pump Control: Pendant |
| Resovoir Capacity (Cu.In.) | 416 |
| Used With Cylinders | Double Acting |
| Horse Power | 1.7 hp |
| UNSPSC Code | 27121800 |
