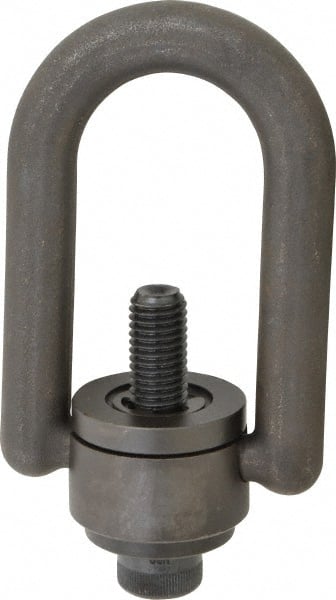

American Drill Bushing - 4,000 Lbs. Load Capacity, 3-1/2 Inch Wide x 6.87 Inch High x 4 Inch Opening, Extra Duty Center Pull Hoist Ring
Item #: 48716070
Brand: American Drill Bushing
Model #: 33616
Product Specifications
| Type | Center Pull Hoist Ring |
| Load Capacity (Lb.) | 4000 |
| Thread Size | 5/8-11 |
| Ring Height (Decimal Inch) | 6.87 |
| Ring Opening (Decimal Inch) | 4.00 |
| Ring Opening (Inch) | 4.00 |
| Bail Diameter (Decimal Inch) | 0.75 |
| Thread Torque | 60.0 |
| Radius (Decimal Inch) | 1.00 |
| Mounting Surface Diameter (Decimal Inch) | 1.89 |
| Pin Length (Decimal Inch) | 0.75 |
| Torque (Ft/Lb) | 60.0 |
| Flange Diameter (Decimal Inch) | 1.89 |
| Chuck Height | 1.500 |
