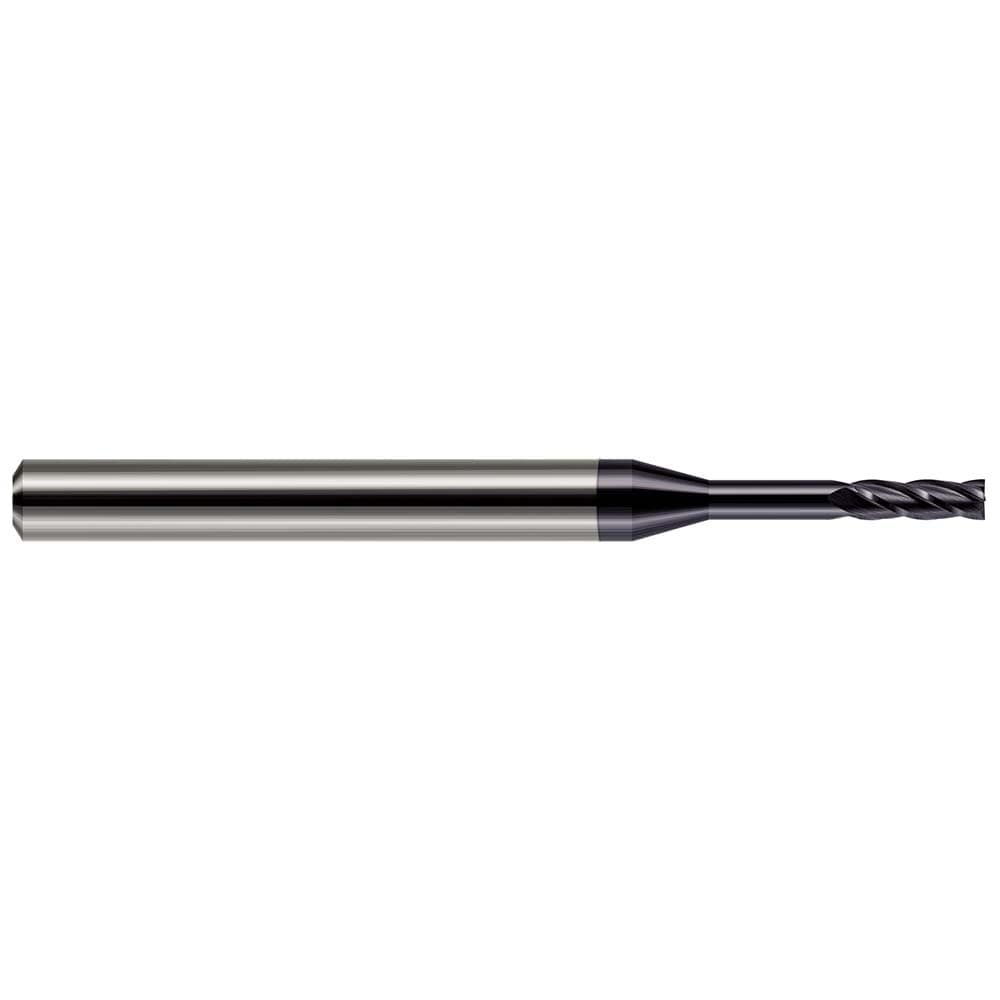

Square End Mill: 0.1406" Dia, 0.4250" LOC, 4 Flute, Solid Carbide
Item #: 05687991
Brand: Harvey Tool
Model #: 802309-C3
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1406 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.4250 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; CFRP Materials; Steel |
| Primary Workpiece Material Code | P; C; K; M; N |
| Coating/Finish | AlTiN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Reach Length (Inch) | 1 |
| Reach Length (Decimal Inch) | 1.0000 |
| Series | Miniature End Mills - Square - Long Reach, Standard Flute |
| System Of Measurement | Decimal Inch |
| UNSPSC Code | 27112803 |
