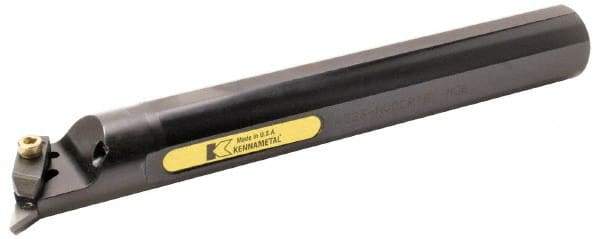

Kennametal - VC.., A-NVOC Internal Right Hand Indexable Profiling Toolholder - 50mm Shank Width, 350mm Long, Steel, Through Coolant
Item #: 48593958
Brand: Kennametal
Model #: 1098997
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Rake | Neutral |
| Insert Compatibility | VC.. |
| Toolholder Style | A-NVOC |
| Series | Top Notch Profiling Boring Bar |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Shank Width/Diameter (mm) | 50.00 |
| Shank Width/Diameter (Decimal Inch) | 1.9685 |
| Overall Length (Decimal Inch) | 13.7795 |
| Overall Length (mm) | 350.00 |
| Insert Holding Method | Clamp |
| Rake Angle | 0 |
| Minimum Hole Diameter (mm) | 63.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.4800 |
| Center to Cutting Edge (mm) | 35.00 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Complete Insert Compatibility | VC.. 160408 |
