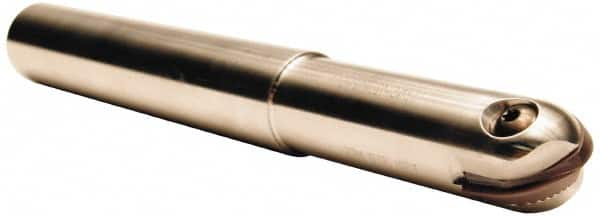

Tool-Flo - 3/8" Cut Diam, 1.344" Max Depth of Cut, 1/2" Shank Diam, 3.562" OAL, Indexable Ball Nose End Mill - 1.344" Head Length, Straight Shank, TNBS Toolholder, TBNR 375 Insert
Item #: 48584973
Brand: Tool-Flo
Model #: TBNS50035WS375
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/8 |
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Maximum Depth of Cut (Decimal Inch) | 1.3440 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | TBNR 375 |
| Toolholder Style | TNBS |
| Overall Length (Decimal Inch) | 3.5620 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Head Length (Decimal Inch) | 1.3440 |
| Neck Diameter (Decimal Inch) | 0.3350 |
