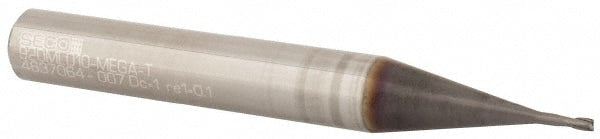

Corner Radius End Mill: 1 mm Dia, 1.50 mm LOC, 0.10 mm Radius, 2 Flute, Solid Carbide
Item #: 48401236
Brand: Seco
Model #: 00023305
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0394 |
| Mill Diameter (mm) | 1.00 |
| Number Of Flutes | 2 |
| Length of Cut (mm) | 1.50 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | MEGA-T |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0039 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.10 |
| Overall Length (mm) | 50.00 |
| Coolant Through | No |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0591 |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 6 |
| Neck Diameter (mm) | 0.95 |
| Neck Diameter (Decimal Inch) | 0.0370 |
| Reach Length (mm) | 4.00 |
| Corner Radius Tolerance | +0.02000 to -0.02000 mm |
| Mill Diameter Tolerance | -0.01/-0.02 mm |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; M; N |
| Series | JM920 |
| TIR Maximum (mm) | 0.01 |
| Helix Style | Medium |
