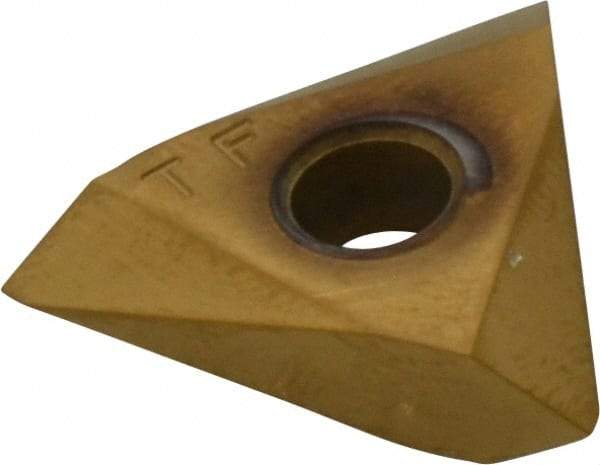

Tool-Flo - TNMA44 API Buttress Grade GP50D Edge Threading Insert - TiN Finish, 5-24" Internal TPI, 1/2" Inscribed Circle
Item #: 48430755
Brand: Tool-Flo
Model #: 0139000N4C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMA |
| Insert Size | 43 |
| Thread Standard | 60 V |
| Manufacturer's Grade | GP50 |
| Internal Threads Per Inch | 5.0-24.0 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1890 |
| Rake | Neutral |
| Material | Carbide |
| Coating | TiN |
| Material Grade | C5/C6/C7 |
| Coating Process | PVD |
| Maximum Corner Radius (Decimal Inch) | 0.0050 |
| Rake Angle | 0 |
| Hole Shape | Cylindrical |
| Corner Radius (Decimal Inch) | 0.0030 |
