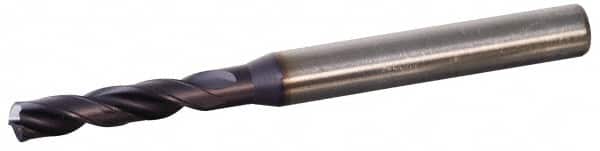

Screw Machine Length Drill Bit: 0.75″ Dia, 140 °, Solid Carbide Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series B976A
Item #: 48421622
Brand: Kennametal
Model #: 2649385
Product Specifications
| Drill Bit Size (Inch) | 3/4 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Drill Bit Size (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 5.1580 |
| Shank Diameter (mm) | 20.00 |
| Series | B976A |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Maximum Drilling Depth (Decimal Inch) | 2.1650 |
| Shank Length (Decimal Inch) | 1.9690 |
| Drill Point Length (Decimal Inch) | 0.1300 |
| Drill Bit Diameter Tolerance | +0.008 to +0.029 mm |
| Flute Length (Decimal Inch) | 3.1100 |
| Flute Length (Inch) | 3-7/64 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
