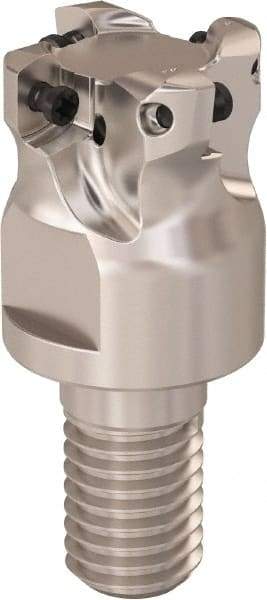

Seco - 20mm Cutting Diam, 0.32mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 4 Inserts, LPHT Insert, R217.21 Toolholder
Item #: 48329957
Brand: Seco
Model #: 84133
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Maximum Depth of Cut (mm) | 0.32 |
| Maximum Depth of Cut (Decimal Inch) | 0.0310 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 4 |
| Insert Style | LPHT |
| Toolholder Style | R217.21 |
| Overall Length (Decimal Inch) | 0.9060 |
| Modular Connection Thread Size | M10 |
| Series | High Feed 2-05 |
