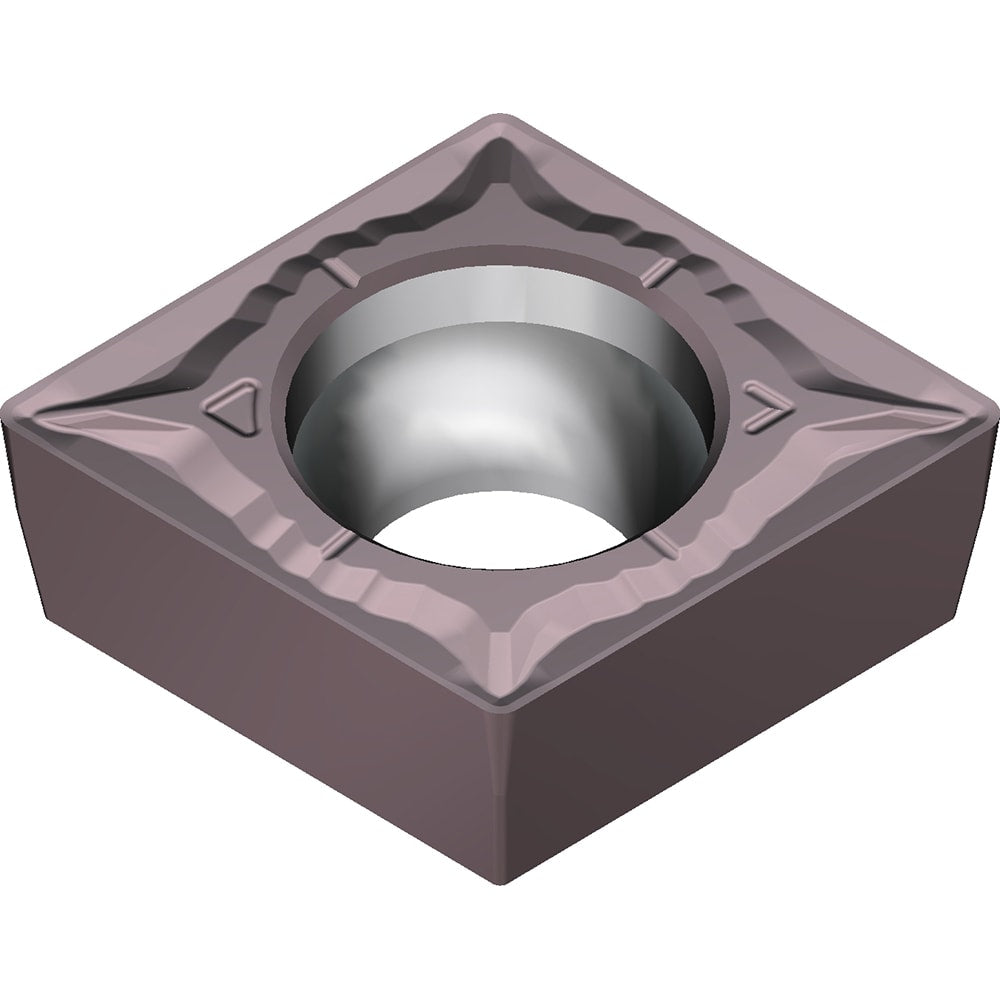

Turning Insert: CCMT32.52EGU AC6040M, Carbide
Item #: 15529969
Brand: Sumitomo
Model #: 196DDCN
Product Specifications
| ANSI Insert Code | CCMT32.52 |
| ISO Insert Code | CCMT09T308 |
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | AC6040M |
| Coating/Finish | Absotech |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | AC6000M |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Light Machining; Medium Machining |
| Grade Characteristics | Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Insert Holding Method | Screw-On |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3819 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | CCMT09T308N-GU |
| Manufacturers Catalog Number | CCMT32.52EGU-AC6040M |
| Material Grade | M40; M30 |
| Chip Breaker | EGU |
| ANSI Size Code | 32.52 |
| ISO Size Code | 09T308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.52 |
