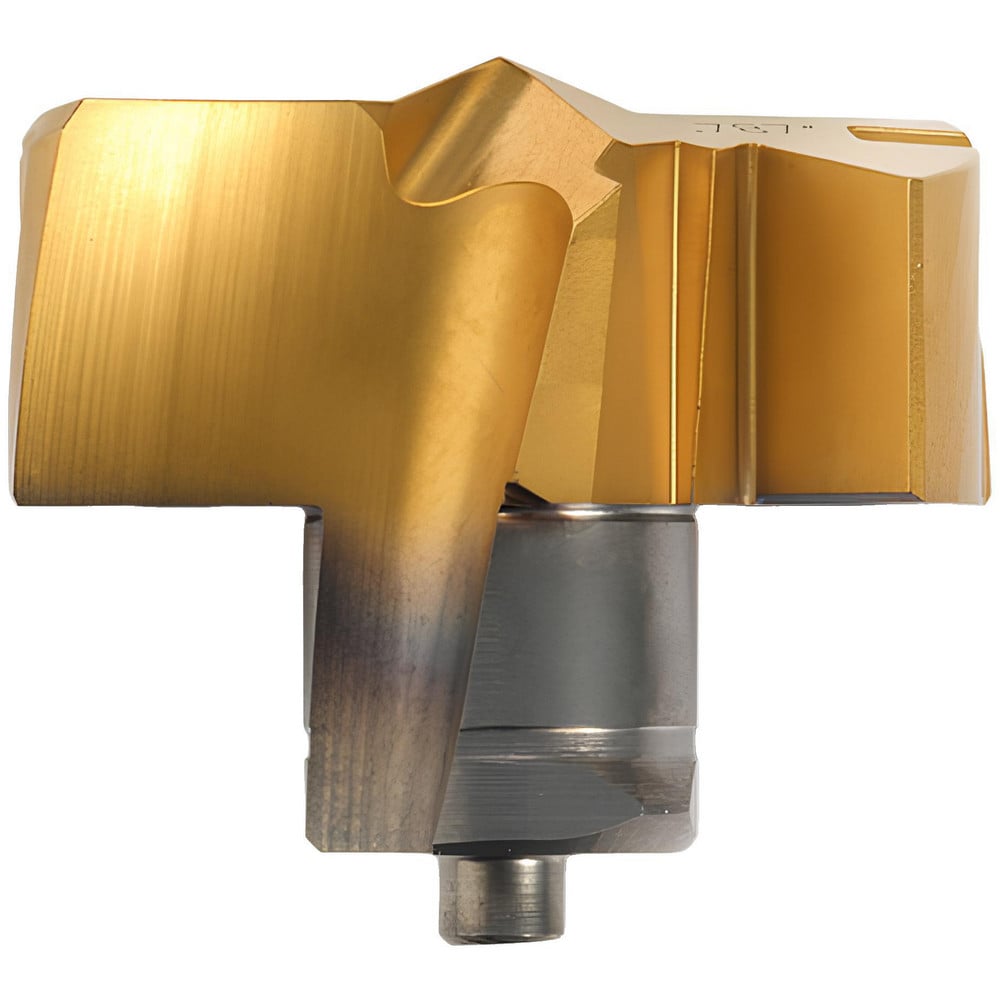

Replaceable Drill Tips: .82X.382X.311, 0.8200" Dia, 20.83 mm Dia, 90 deg Point, IN2505
Item #: 10247039
Brand: Ingersoll Cutting Tools
Model #: 6125299
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.8200 |
| Cutting Diameter (mm) | 20.83 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2505 |
| Material Grade | M15; S20; P15; S05; P30; M35 |
| Series | TPF |
| Coating Process | PVD |
| Insert Seat Size | 21 |
| Functional Length (Decimal Inch) | 0.3110 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Standards | ANSI |
| Height (mm) | 10.00 |
| Overall Length/Projection (Decimal Inch) | 0.3820 |
| Drill Point Angle | 90 |
| Flute Type | Straight |
| Insert Holding Method | Clamp |
| ISO Number | TPF2100R01 IN2505 |
| Coolant Through | Yes |
| Flute Length (mm) | 8.00 |
| Point Type | Standard |
| Spiral Type | Straight |
| Style | TPF |
| UNSPSC Code | 23242105 |
| Applications | Drilling; Coolant-Thru; Flat Bottom |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 90 |
| Number Of Flutes | 2 |
