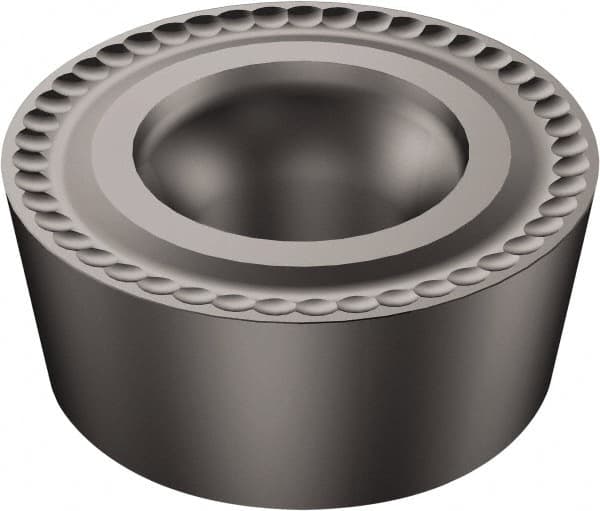

Sandvik Coromant - RCMT32.5 M0 Grade H13A Carbide Turning Insert - Uncoated, Round, 3/8" Inscr Circle, 5/32" Thick
Item #: 48241475
Brand: Sandvik Coromant
Model #: 5740883
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 32.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | M0 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| ISO Number | RCMT09T300M0H13A |
| Relief Angle | 7 |
| Manufacturers Catalog Number | 5740883 |
| Primary Workpiece Material | K; S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Insert Holding Method | Screw |
| Shape | Round |
