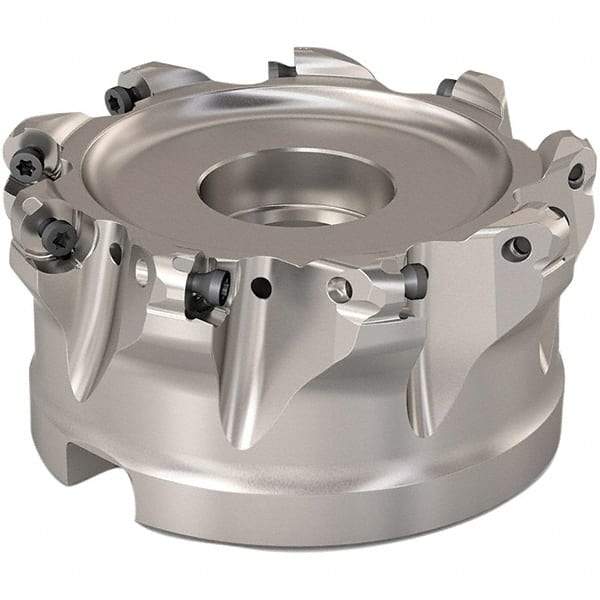

Seco - 89.6mm Cut Diam, 6mm Max Depth, 1-1/2" Arbor Hole, 9 Inserts, RP..1204 Insert Style, Indexable Copy Face Mill - R220.29 Cutter Style, 8,800 Max RPM, 2 High, Through Coolant, Series R220.29
Item #: 48050363
Brand: Seco
Model #: 13725
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 89.60 |
| Cutting Diameter (Decimal Inch) | 3.5276 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Overall Height (Inch) | 2 |
| Series | R220.29 |
| Number of Cutter Inserts | 9 |
| Insert Compatibility | RP..1204 |
| Cutter Style | R220.29 |
| Through Coolant | Yes |
| Maximum RPM | 8800 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 90.00 |
| Insert Inscribed Circle (mm) | 12.00 |
| Keyway Width (mm) | 16.0000 |
| Cutting Direction | Right Hand |
| Overall Diameter (Decimal Inch) | 4.0000 |
| Overall Diameter (mm) | 101.6000 |
