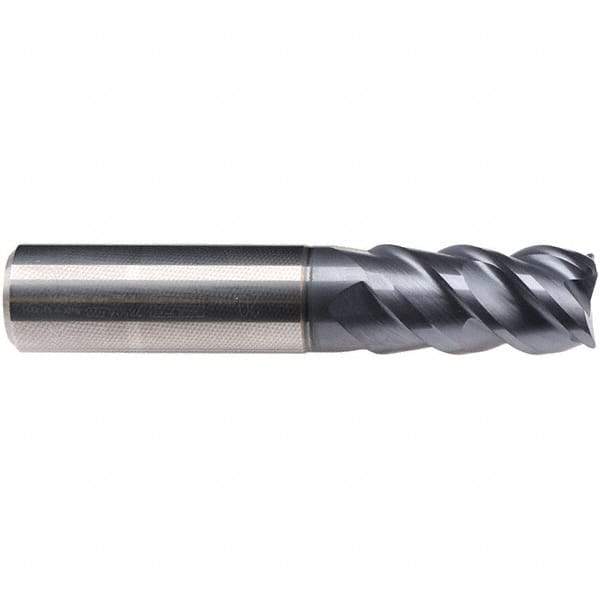

Emuge - 16mm Diam, 40mm LOC, 4 Flute Solid Carbide Roughing & Finishing End Mill - TiAlN Finish, 92mm OAL, 16mm Shank Diam, Cylindrical Shank, 50° Helix, Centercutting, Long Length
Item #: 47951355
Brand: Emuge
Model #: 2850A.016
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 16.00 |
| End Type | Square |
| Corner Radius (mm) | 1.00 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Length of Cut (mm) | 40.0000 |
| Shank Diameter (mm) | 16 |
| Overall Length (mm) | 92 |
| Centercutting | Center Cutting |
| Extended Reach | ExtendedReach |
| Shank Type | Cylindrical |
| Helix Angle | 50 |
| Single or Double End | Single |
| Length Type | Long |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | -0.04 |
| Series/List | 2850A |
