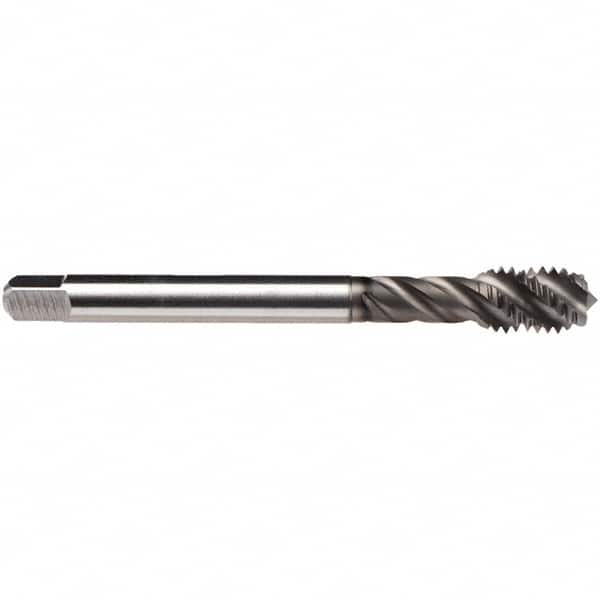

Emuge - 7/16-20 UNF 4 Flute BT Bottoming Spiral Flute Tap - High Speed Steel, GLT-1 Finish, 3.937" OAL, Right Hand Flute, Right Hand Thread, Series CU51C400
Item #: 47943626
Brand: Emuge
Model #: CU51C400.5716
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
GLT-1 is a multi-layered coating that offers a hard surface coating and an anti-friction layer for fast and efficient chip removal. It is heat resistant, wear resistant and prevents sliding.GLT-1 is a proprietary coating exclusive to Emuge.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 7/16-20 |
| Chamfer | Bottoming |
| Class of Fit | BT |
| Number of Flutes | 4 |
| Material | High Speed Steel |
| Finish/Coating | GLT-1 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.9370 |
| Helix Angle | 45 |
| Thread Standard | UNF |
| Flute Type | Fast Spiral |
| Style | Spiral Flute |
| Series/List | CU51C400 |
| Shank Diameter (Decimal Inch) | 0.3230 |
