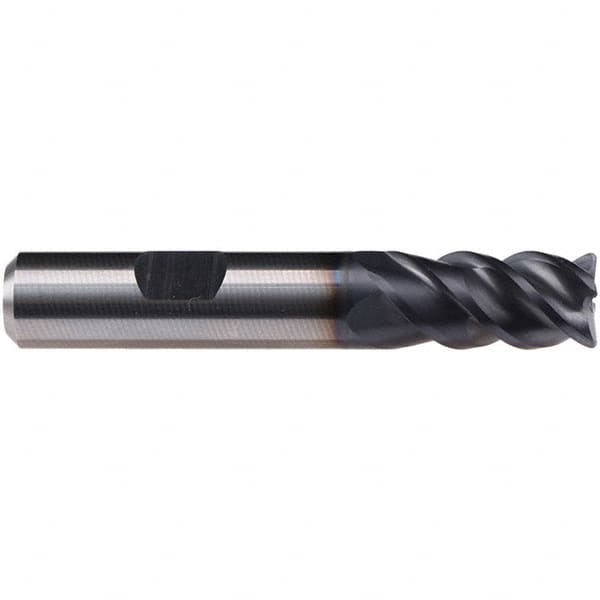

Emuge - 10mm Diam, 30mm LOC, 4 Flute Solid Carbide Roughing & Finishing End Mill - TiAlN Finish, 72mm OAL, 10mm Shank Diam, Weldon Shank, 50° Helix, Centercutting, Long Length
Item #: 47938543
Brand: Emuge
Model #: 2814A.010
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 10.00 |
| End Type | Square |
| Corner Radius (mm) | 0.50 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Length of Cut (mm) | 30.0000 |
| Shank Diameter (mm) | 10 |
| Overall Length (mm) | 72 |
| Centercutting | Center Cutting |
| Extended Reach | ExtendedReach |
| Shank Type | Weldon |
| Helix Angle | 50 |
| Single or Double End | Single |
| Length Type | Long |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series/List | 2814A |
