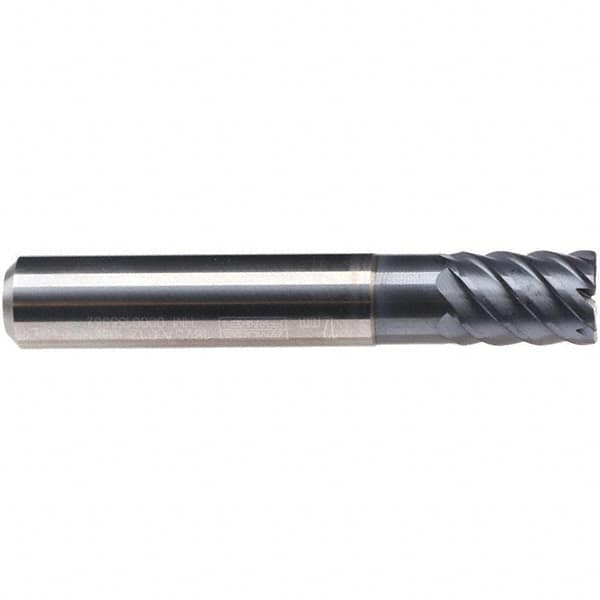

Emuge - 8mm Diam, 12mm LOC, 6 Flute Solid Carbide Roughing & Finishing End Mill - TiAlN Finish, 58mm OAL, 8mm Shank Diam, Cylindrical Shank, 50° Helix, Stub Length
Item #: 47931787
Brand: Emuge
Model #: 1825A.008
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 8.00 |
| End Type | Square |
| Chamfer Length (mm) | 0.10 |
| Number of Flutes | 6 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Length of Cut (mm) | 12.0000 |
| Shank Diameter (mm) | 8 |
| Overall Length (mm) | 58 |
| Centercutting | Non-Center Cutting |
| Extended Reach | ExtendedReach |
| Shank Type | Cylindrical |
| Helix Angle | 50 |
| Single or Double End | Single |
| Length Type | Stub |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | -0.04 |
| Series/List | 1825A |
