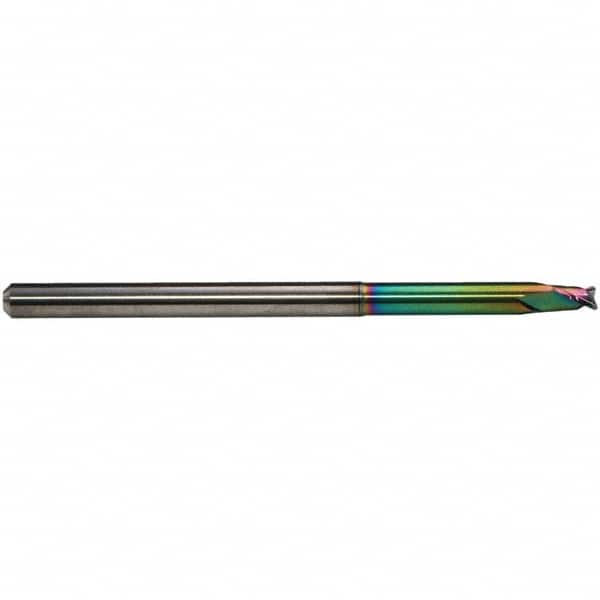

Emuge - 5mm Diam, 5mm LOC, 2 Flute Solid Carbide Roughing & Finishing End Mill - CrN Finish, 100mm OAL, 6mm Shank Diam, Cylindrical Shank, 30° Helix, Extra Long Length
Item #: 47931142
Brand: Emuge
Model #: 1941R.005
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Chromium Nitride (CrN) is a coating similar to TiN, but has higher heat resistance. It is commonly used on aluminum, brass, copper, nickel alloys and other non-ferrous metals.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 5.00 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.50 |
| Number of Flutes | 2 |
| Material | Solid Carbide |
| Finish/Coating | CrN |
| Length of Cut (mm) | 5.0000 |
| Shank Diameter (mm) | 6 |
| Overall Length (mm) | 100 |
| Centercutting | Non-Center Cutting |
| Extended Reach | ExtendedReach |
| Shank Type | Cylindrical |
| Helix Angle | 30 |
| Single or Double End | Single |
| Length Type | Extra Long |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | +0.01/-0.01 |
| Series/List | 1941R |
