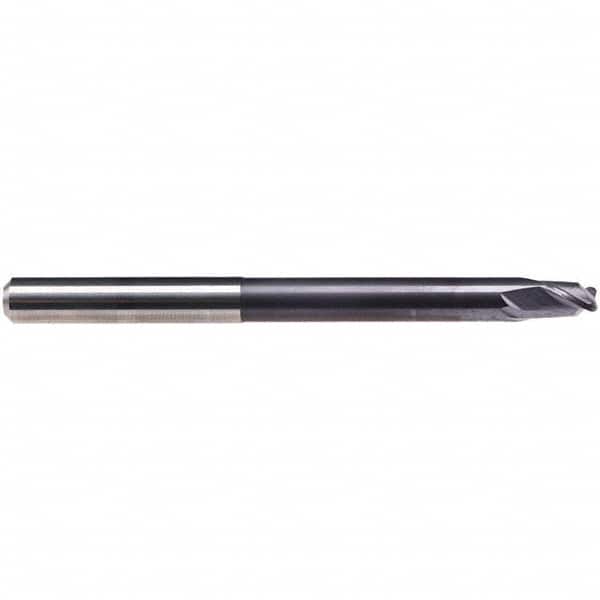

Emuge - 7/16" Diam, 11/32" LOC, 2 Flute Solid Carbide Roughing & Finishing End Mill - TiAlN Finish, 5" OAL, 7/16" Shank Diam, Cylindrical Shank, 30° Helix, Extra Long Length
Item #: 47930805
Brand: Emuge
Model #: 1980A.04375
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 7/16 |
| End Type | Toroidal |
| Corner Radius (Decimal Inch) | 0.1094 |
| Number of Flutes | 2 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Length of Cut (Inch) | 11/32 |
| Shank Diameter (Inch) | 7/16 |
| Overall Length (Inch) | 5 |
| Centercutting | Non-Center Cutting |
| Extended Reach | ExtendedReach |
| Shank Type | Cylindrical |
| Helix Angle | 30 |
| Reach Length (Inch) | 3-1/8 |
| Neck Diameter (Decimal Inch) | 0.4173 |
| Single or Double End | Single |
| Length Type | Extra Long |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +/-0.0004 |
| Series/List | 1980A |
