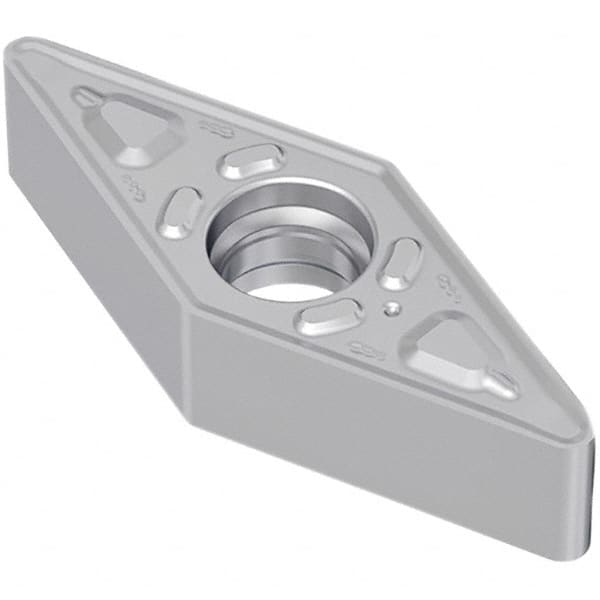

Seco - VNMU2.532 M6 Grade TP1501 Carbide Turning Insert - Ti(C/N)+Al2O3+TiN Finish, 35° Diamond, 0.031" Corner Radius
Item #: 47902655
Brand: Seco
Model #: 49180
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMU |
| Insert Size | 2.532 |
| Material | Carbide |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | TP1501 |
| Coating | Ti(C/N)+Al2O3+TiN |
| Material Grade | C2/C3 |
| Chip Breaker | M6 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Relief Angle | 0 |
| Primary Workpiece Material | P |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Diamond |
