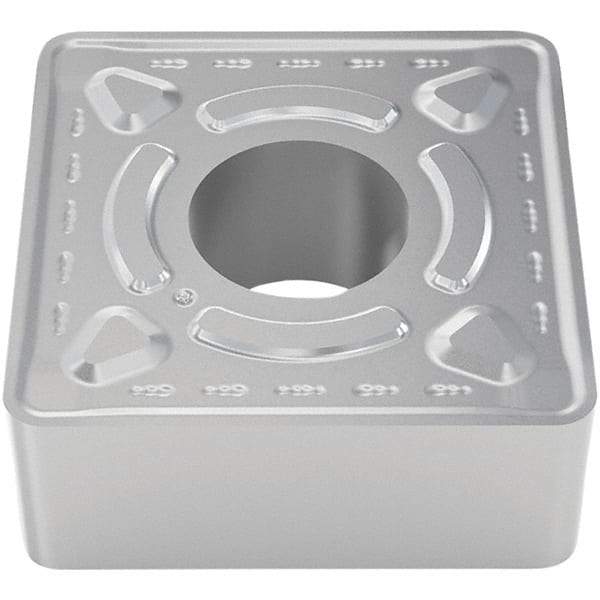

Seco - SNMG643 M6 Grade TP1501 Carbide Turning Insert - Ti(C/N)+Al2O3+TiN Finish, 90° Square, 3/4" Inscr Circle, 1/4" Thick
Item #: 47901707
Brand: Seco
Model #: 49080
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 643 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Manufacturer's Grade | TP1501 |
| Coating | Ti(C/N)+Al2O3+TiN |
| Material Grade | C2/C3 |
| Chip Breaker | M6 |
| Hole Diameter (Decimal Inch) | 0.3100 |
| Relief Angle | 0 |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Square |
