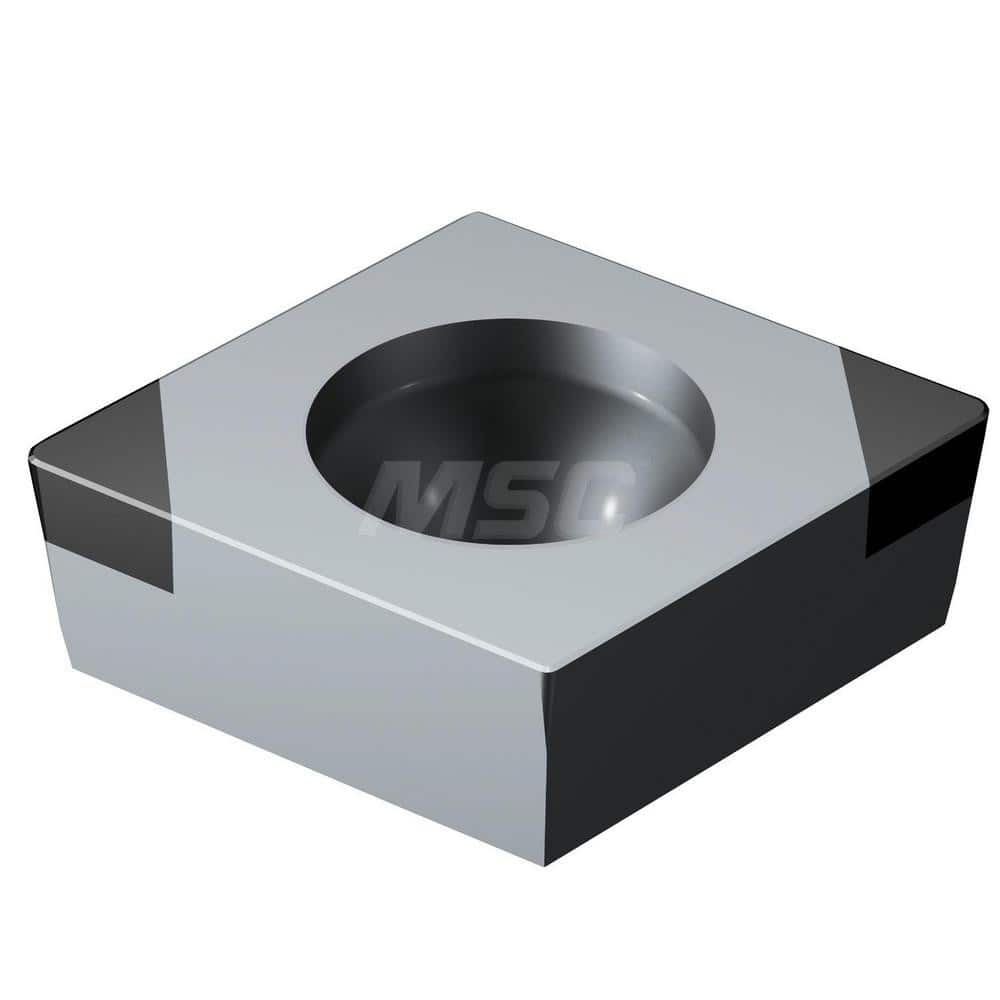

CCGW21.51S0530F 7135 CBN Turning Insert Uncoated, Neutral, 1/4″ Inscribed Circle, 0.0157″ Corner Radius, 0.0937″ Thick
Item #: 47811021
Brand: Sandvik Coromant
Model #: 7586882
Product Specifications
| Insert Style | CCGW |
| Insert Shape Code | C |
| Insert Size Code | 0602 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | 7135 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CoroTurn 107 |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | CCGW2(1.5)1S0530F7135 |
| Iso Code | CCGW060204S01530F 7135 |
| Cutting Direction | Neutral |
| Chip Breaker | W |
| Coating/Finish | Uncoated |
