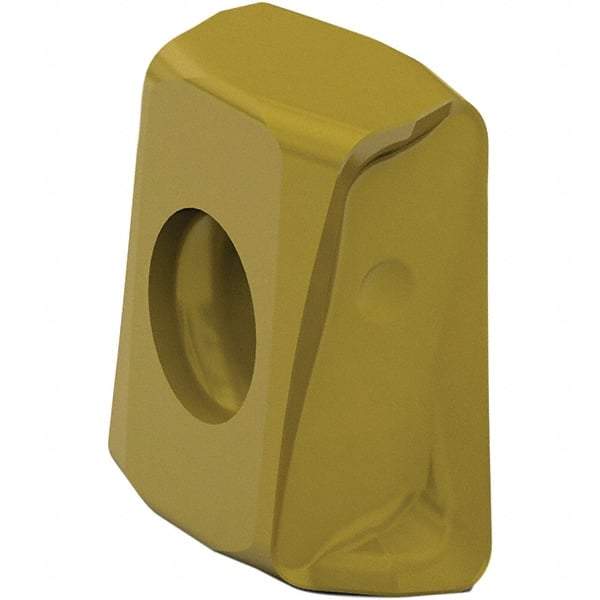

Seco - LOEX080404 M08 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 4.4mm Thick, 0.4mm Corner Radius
Item #: 47769187
Brand: Seco
Model #: 52963
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LOEX |
| Insert Size | 080404 |
| Material | Carbide |
| Material Grade | C3/C4 |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Width (mm) | 4.40 |
| Length (mm) | 9.30 |
| Thickness (mm) | 4.40 |
| Corner Radius (mm) | 0.40 |
| Hole Diameter (mm) | 3.00 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | M08 |
| Cutting Edge Style | Honed |
| Cutter Series Compatibility | R217/220.94-12 |
