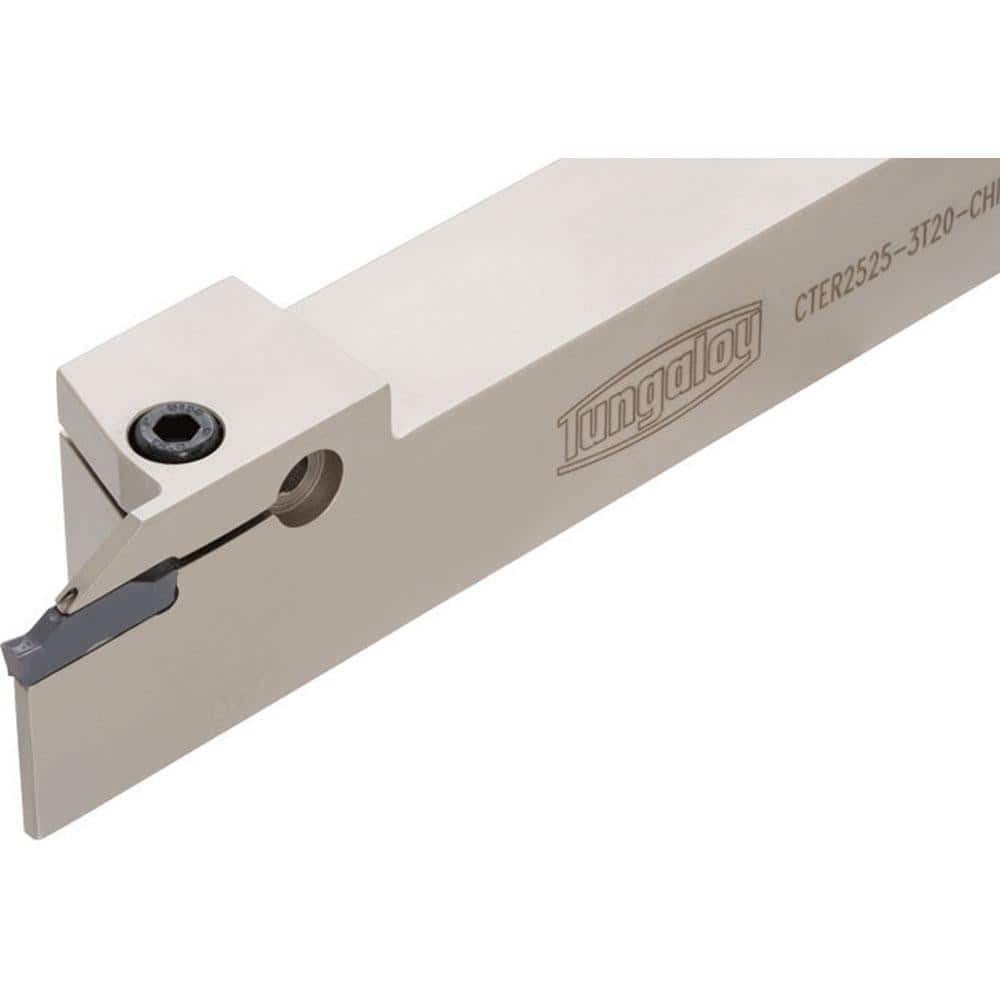

Indexable Grooving/Cut-Off Toolholders; Cutting Direction: Right Hand; Maximum Depth of Cut (Decimal Inch): 1.2600; Maximum Groove Width (Decimal Inch): 0.2560; Minimum Groove Width (Decimal Inch): 0.2170; Toolholder Style: CTE; Tool Material: Steel; Inse
Item #: 47564513
Brand: Tungaloy
Model #: 6720333
Product Specifications
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Maximum Groove Width (Decimal Inch) | 0.2560 |
| Minimum Groove Width (Decimal Inch) | 0.2170 |
| Toolholder Style | CTE |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 6 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 6.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Series | CTE |
| Cutting Tool Application | Grooving; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9050 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 2.4410 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
