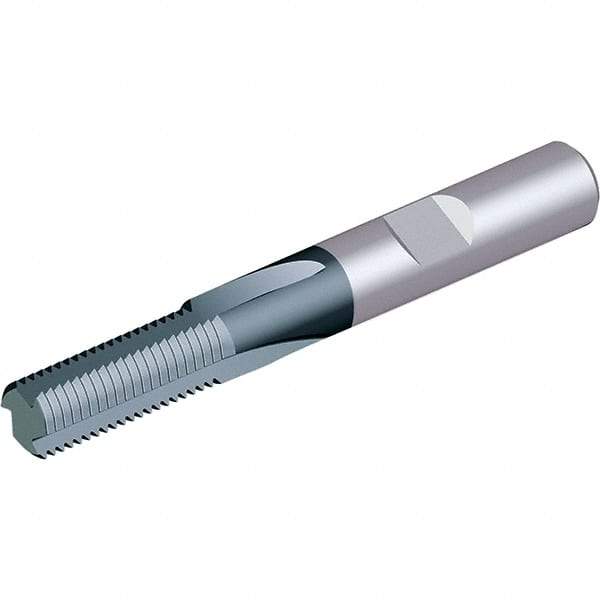

Vargus - 1/2-13 Thread, 0.315" Shank Diam, TiAlN Coating, Solid Carbide Straight Flute Thread Mill - 5 Flutes, 2.4803" OAL, 1/2" Min Noml Diameter
Item #: 47549134
Brand: Vargus
Model #: 100-00084
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and commonly used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Threads Per Inch | 13 |
| Thread Size (Inch) | 1/2-13 |
| Minimum Nominal Diameter (Inch) | 1/2 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Number of Flutes | 5 |
| Cutting Diameter (Decimal Inch) | 0.3110 |
| Finish/Coating | TiAlN |
| Length of Cut (Decimal Inch) | 0.7693 |
| Thread Standard | UN |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.4803 |
| Through Coolant | No |
| Material Grade | VTS |
