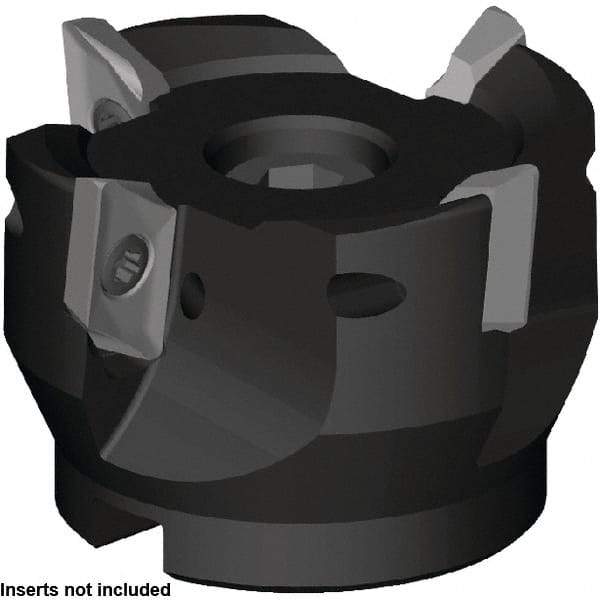

Kennametal - 3 Inserts, 40mm Cut Diam, 16mm Arbor Diam, 16mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 45mm High, ZDET 16M5..721 Insert Compatibility, Through Coolant, Series 5720VZ16
Item #: 47499926
Brand: Kennametal
Model #: 5673490
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Arbor Hole Diameter (mm) | 16.00 |
| Lead Angle | 0 |
| Overall Height (mm) | 45.00 |
| Insert Compatibility | ZDET 16M5..721 |
| Series | 5720VZ16 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 16.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Cutter Style | 5720 |
| Number of Flutes | 3 |
| Hub Diameter (mm) | 32.00 |
| Maximum Body Diameter (Decimal Inch) | 1.5012 |
| Maximum RPM | 36500 |
| Coolant Hole Diameter (Decimal Inch) | 0.1375 |
| Toolholder Material | Steel |
