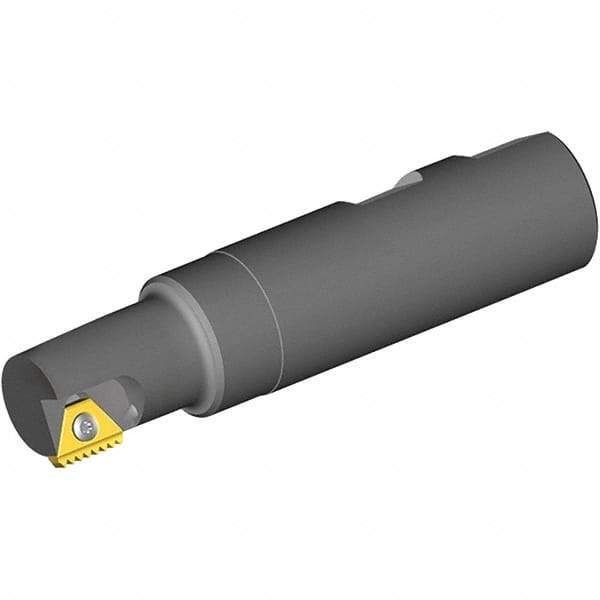

Vargus - 0.669" Cut Diam, 1.14" Max Depth of Cut, 5/8" Shank Diam, Internal/External Indexable Thread Mill - Insert Style 3B, 3/8" Insert Size, 1 Insert, Toolholder Style BTMNC, 3.15" OAL
Item #: 47497474
Brand: Vargus
Model #: 67605
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6690 |
| Maximum Hole Depth (Decimal Inch) | 1.1400 |
| Insert Style | 3B |
| Insert Size (Decimal Inch) | 0.3750 |
| Toolholder Style | BTMNC |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 3.1500 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Carbide |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (Decimal Inch) | 0.5300 |
