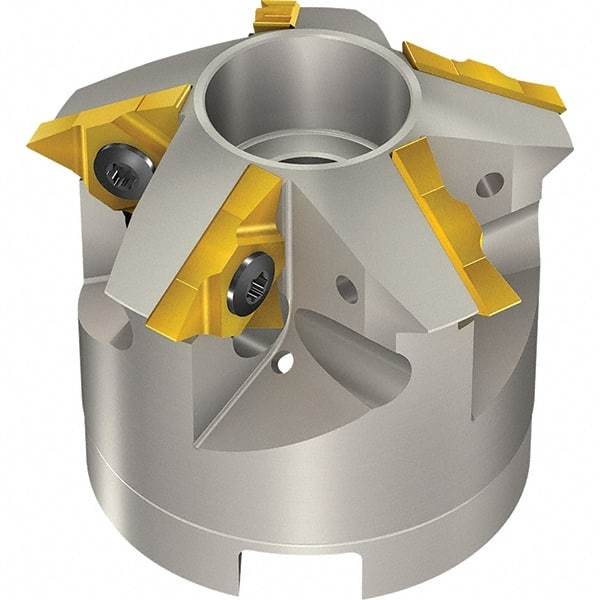

Vargus - 3.47" Cut Diam, 11.811" Max Depth of Cut, 1" Arbor Hole Diam, Internal Indexable Thread Mill - Insert Style 4UI, 1/2" Insert Size, 6 Inserts, Toolholder Style TM SC-D, 2" OAL
Item #: 47497268
Brand: Vargus
Model #: 67752
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.4700 |
| Maximum Hole Depth (Decimal Inch) | 11.8110 |
| Insert Style | 4UI |
| Insert Size (Decimal Inch) | 0.5000 |
| Toolholder Style | TM SC-D |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 2.0000 |
| Number of Threading Inserts | 6 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Carbide |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Neck Diameter (Decimal Inch) | 2.9900 |
