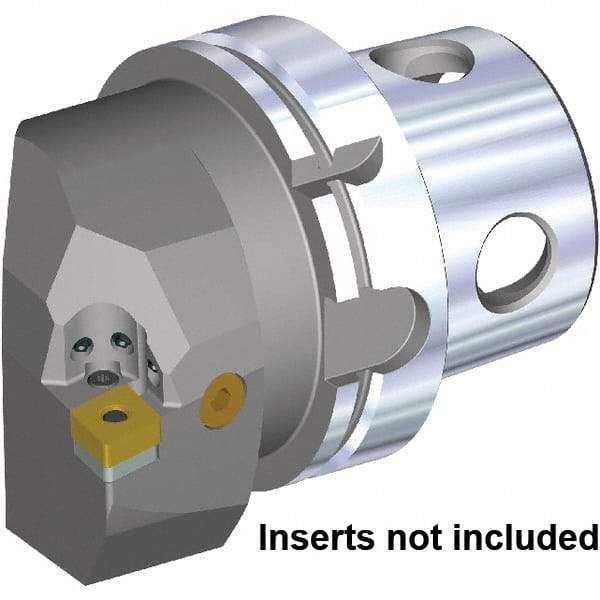

Kennametal - Left Hand Cut, Size KM4X100, CN..643 & CN... 190612 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 63mm Ctr to Cutting Edge, 100mm Head Length, Through Coolant, Series KM4X
Item #: 47452644
Brand: Kennametal
Model #: 5697314
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM4X100 |
| Series Name | KM4X |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 100.00 |
| Insert Style | CN..643; CN... 190612 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 63.00 |
| Insert Holding Method | Clamp |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 100.00 |
| Minimum Hole Diameter (mm) | 120.00 |
| Axial Rake Angle | -7.000 |
| Radial Rake Angle | -7.000 |
