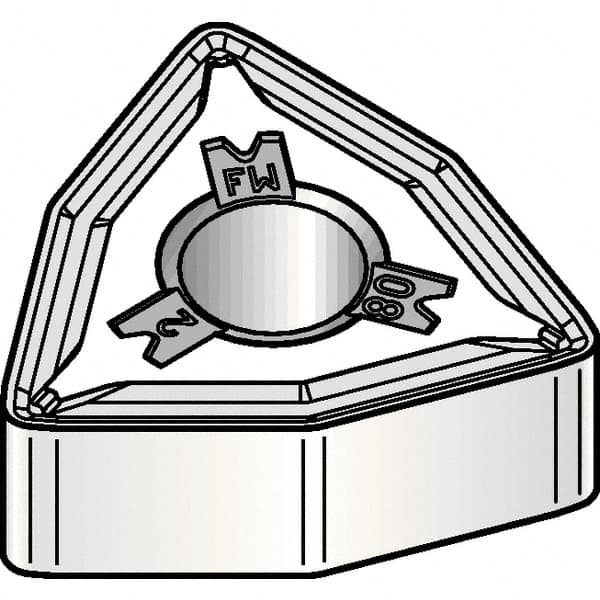

Kennametal - WNMG331 FW Grade KCP05B Carbide Turning Insert - TiOCN Finish, 80° Trigon, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 47451786
Brand: Kennametal
Model #: 6017868
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 331 |
| Material | Carbide |
| Length (Decimal Inch) | 0.2565 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | KCP05B |
| Coating | TiOCN |
| Chip Breaker | FW |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Lead Angle | -5.000 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Kenloc |
| Shape | Trigon |
