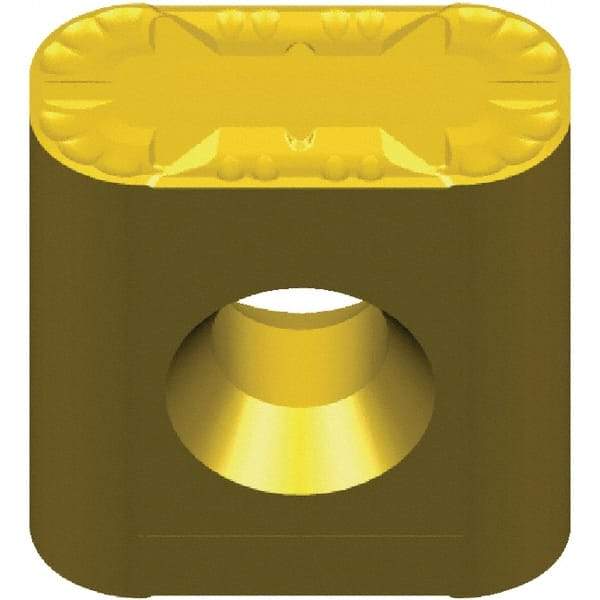

Kennametal - LNUX190640 S-WT5 Grade KCP25B Carbide Turning Insert - TiOCN Finish, 90° Square, 3/4" Inscr Circle, 1/4" Thick, 4mm Corner Radius
Item #: 47451695
Brand: Kennametal
Model #: 6181215
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNUX |
| Insert Size | 190640 |
| Material | Carbide |
| Length (Inch) | 3/4 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Corner Radius (mm) | 4.0000 |
| Manufacturer's Grade | KCP25B |
| Coating | TiOCN |
| Chip Breaker | S-WT5 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Shape | Square |
