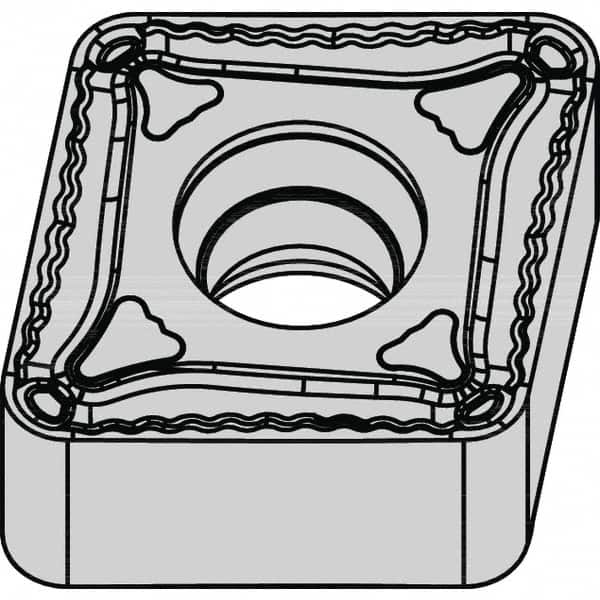

Kennametal - CNMU443 MN Grade KCP05B Carbide Turning Insert - TiOCN Finish, 80° Diamond/Rhombic, 1/2" Inscr Circle, 1/4" Thick, 0.0472" Corner Radius
Item #: 47451497
Brand: Kennametal
Model #: 6000199
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMU |
| Insert Size | 443 |
| Material | Carbide |
| Length (Decimal Inch) | 0.5080 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Manufacturer's Grade | KCP05B |
| Coating | TiOCN |
| Chip Breaker | MN |
| Hole Diameter (Decimal Inch) | 0.1840 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Kenloc |
| Shape | Diamond/Rhombic |
