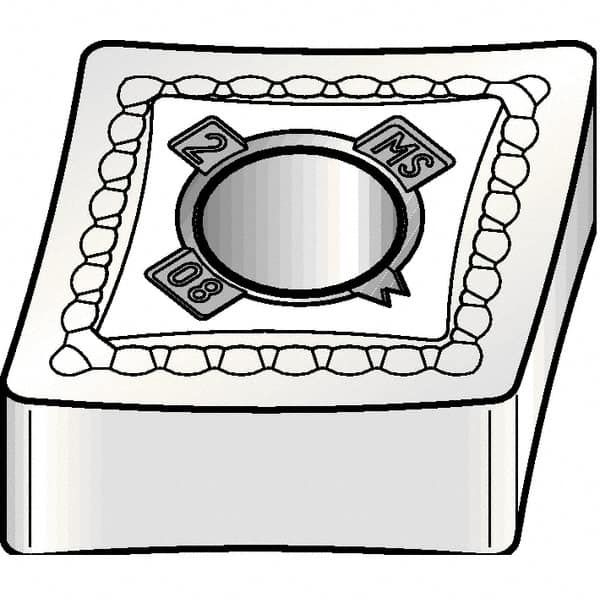

Kennametal - CNMG432 MS Grade KCS10 Carbide Turning Insert - AlTiN Finish, 80° Diamond/Rhombic, 1/2" Inscr Circle, 3/16" Thick, 0.0312" Corner Radius
Item #: 47451430
Brand: Kennametal
Model #: 4082972
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 432 |
| Material | Carbide |
| Length (Decimal Inch) | 0.5077 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | KCS10 |
| Coating | AlTiN |
| Chip Breaker | MS |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Kenloc |
| Shape | Diamond/Rhombic |
