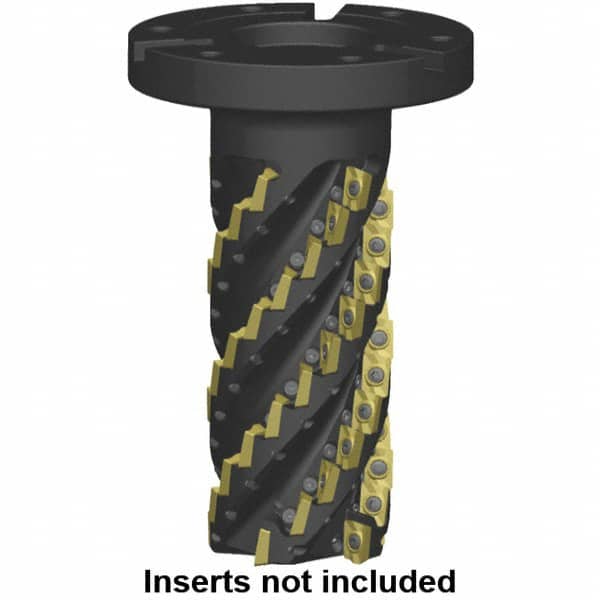

Kennametal - 50mm Cut Diam, 108.39mm Max Depth of Cut, 50.01mm Shank Diam, 155mm OAL, Indexable Square Shoulder Helical End Mill - ADCT154512PD.R... Inserts, Flange Mount Shank, 0° Lead Angle, Through Coolant, Series NGEB
Item #: 47450853
Brand: Kennametal
Model #: 5517276
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9690 |
| Shank Type | Flange Mount |
| Shank Diameter (mm) | 50.01 |
| Overall Length/Projection (mm) | 155.00 |
| Lead Angle | 0 |
| Series | NGEB |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 108.39 |
| Number of Cutter Inserts | 36 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | NGEB |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 50.00 |
| Insert Compatibility | ADCT154512PD.R... |
| Maximum RPM | 6900 |
| Toolholder Material | Steel |
| Coolant Hole Diameter (mm) | 9.00 |
