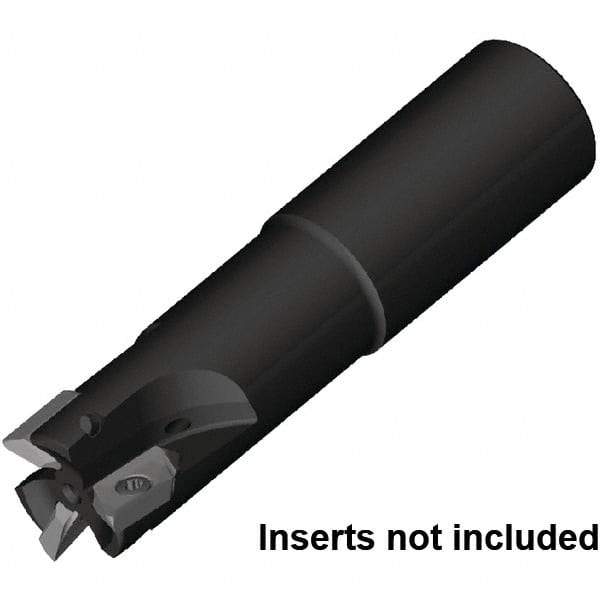

Kennametal - 25mm Cut Diam, 16mm Max Depth of Cut, 25mm Shank Diam, 131mm OAL, Indexable Square Shoulder End Mill - ZDET16M5..721 Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series 5720
Item #: 47450846
Brand: Kennametal
Model #: 5672892
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9840 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 131.00 |
| Lead Angle | 0 |
| Series | 5720 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 16.00 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | 5720 |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 25.00 |
| Head Length (mm) | 75.00 |
| Insert Compatibility | ZDET16M5..721 |
| Shank Length (mm) | 56.00 |
| Maximum RPM | 50000 |
| Toolholder Material | Steel |
| Coolant Hole Diameter (mm) | 5.00 |
