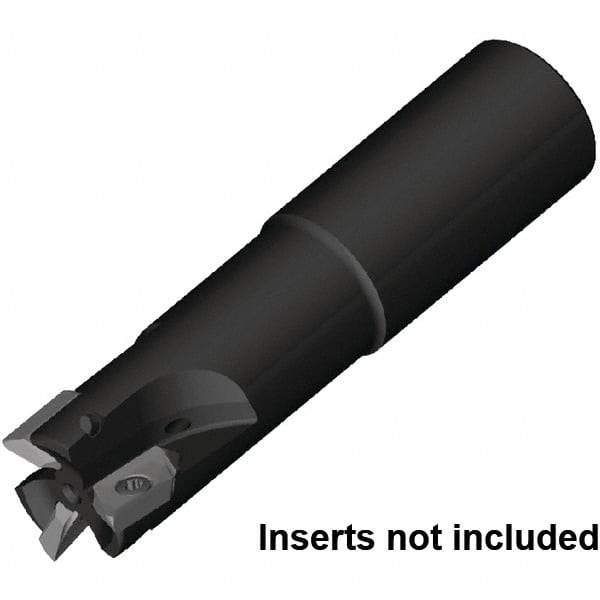

Kennametal - 1-1/4" Cut Diam, 16mm Max Depth of Cut, 1-1/4" Shank Diam, 134.11mm OAL, Indexable Square Shoulder End Mill - ZDET16M5..721 Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series 5720
Item #: 47450770
Brand: Kennametal
Model #: 5672885
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (mm) | 134.11 |
| Lead Angle | 0 |
| Series | 5720 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 16.00 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | 5720 |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Inch) | 1-1/4 |
| Head Length (Inch) | 3 |
| Insert Compatibility | ZDET16M5..721 |
| Shank Length (mm) | 58.01 |
| Maximum RPM | 41500 |
| Toolholder Material | Steel |
| Coolant Hole Diameter (mm) | 7.00 |
