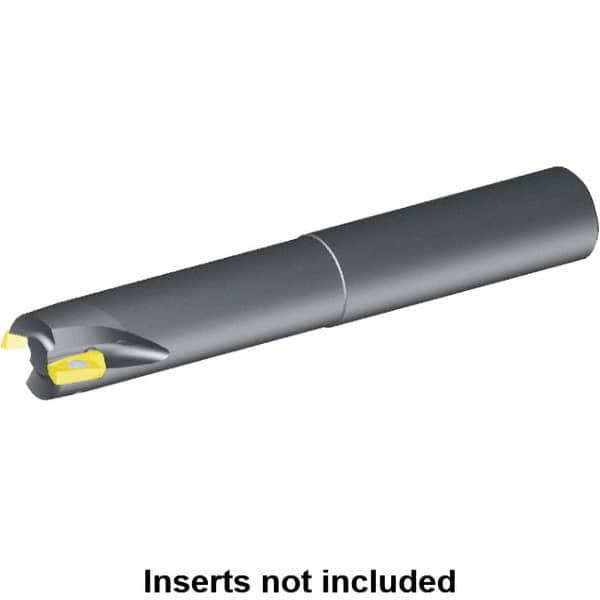

Kennametal - 1-1/2" Cut Diam, 14.3mm Max Depth of Cut, 1-1/4" Shank Diam, 10" OAL, Indexable Square Shoulder End Mill - E.. 14.. Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series Mill 1-14
Item #: 47450630
Brand: Kennametal
Model #: 5903140
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Inch) | 10 |
| Lead Angle | 0 |
| Series | Mill 1-14 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 14.30 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | Mill 1-14 |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Inch) | 1-1/2 |
| Head Length (Inch) | 2-1/4 |
| Insert Compatibility | E.. 14.. |
| Shank Length (Inch) | 7-3/4 |
| Shank Length (mm) | 196.85 |
| Maximum RPM | 29600 |
| Toolholder Material | Steel |
| Coolant Hole Diameter (mm) | 8.00 |
