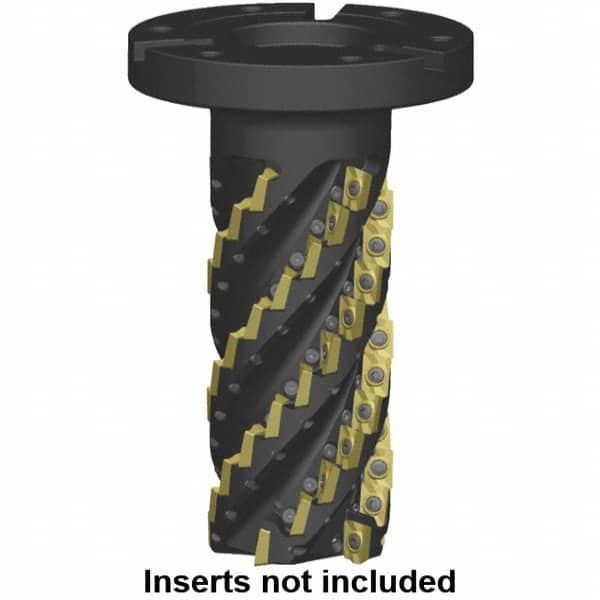

Kennametal - 63mm Cut Diam, 143.78mm Max Depth of Cut, 50.01mm Shank Diam, 195mm OAL, Indexable Square Shoulder Helical End Mill - ADCT154512PD.R... Inserts, Flange Mount Shank, 0° Lead Angle, Through Coolant, Series NGEB
Item #: 47450606
Brand: Kennametal
Model #: 5517277
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4800 |
| Shank Type | Flange Mount |
| Shank Diameter (mm) | 50.01 |
| Overall Length/Projection (mm) | 195.00 |
| Lead Angle | 0 |
| Series | NGEB |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 143.78 |
| Number of Cutter Inserts | 60 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | NGEB |
| Number of Flutes | 5 |
| Minimum Cutting Diameter (mm) | 63.00 |
| Insert Compatibility | ADCT154512PD.R... |
| Maximum RPM | 6150 |
| Toolholder Material | Steel |
| Coolant Hole Diameter (mm) | 12.00 |
