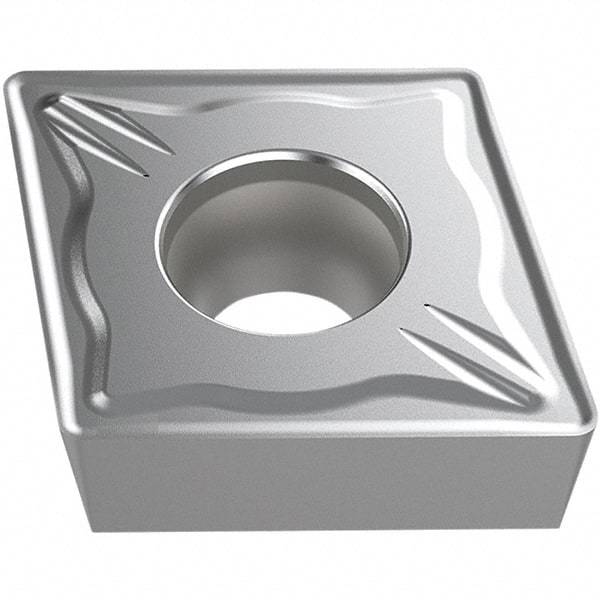

Seco - CCMT53.52 M5 Grade TP2501 Carbide Turning Insert - Ti(C/N)/Al2O3/TiN Finish, Parallelogram, 0.63" Inscr Circle, 5.56mm Thick, 0.03" Corner Radius
Item #: 47429543
Brand: Seco
Model #: 03169650
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 53.52 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.6300 |
| Thickness (Decimal Inch) | 0.2200 |
| Thickness (mm) | 5.56 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Manufacturer's Grade | TP2501 |
| Coating | Ti(C/N)/Al2O3/TiN |
| Chip Breaker | M5 |
| Proprietary Coating Designation | Duratomic |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| Shape | Parallelogram |
