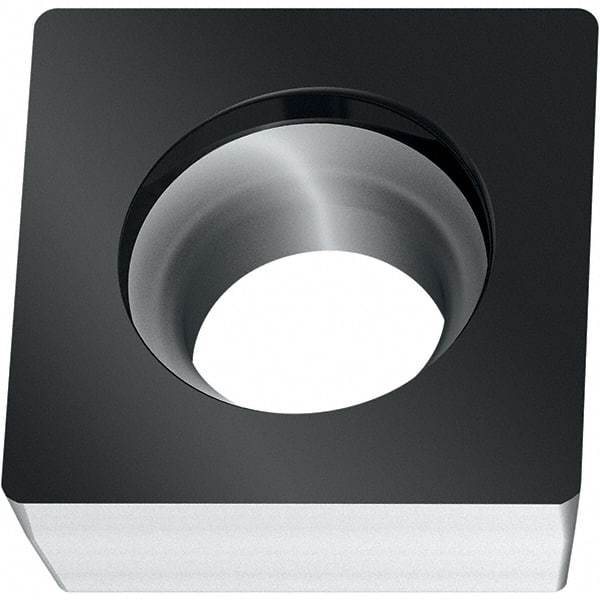

Walter - SCMW RK6 Grade WKK10S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 90° Square, 9.53mm Inscr Circle, 3.97mm Thick, 0.8mm Corner Radius
Item #: 47335559
Brand: Walter
Model #: 6651581
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | SCMW |
| Length (mm) | 9.53 |
| Length (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1560 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.8 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | WKK10S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | RK6 |
| Insert Length (Decimal Inch) | 0.3750 |
| OverallLength (mm) | 9.53 |
| Overall Length (Decimal Inch) | 0.3750 |
| Insert Length (mm) | 9.5250 |
| Hole Diameter (mm) | 0.00 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| ISO Number | SCMW09T308-RK6 WKK10S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WKK10S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6651581 |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | SCMW-RK6 |
| Maximum Depth of Cut (mm) | 9.53 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Cutting Width (mm) | 9.53 |
| Shape | Square |
