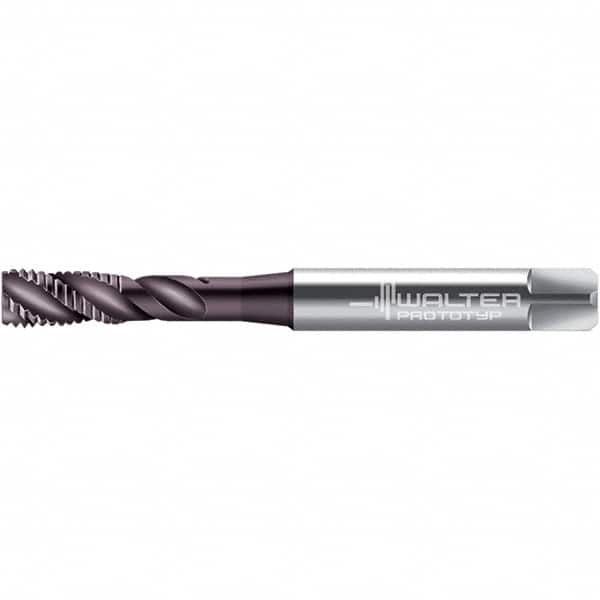

Walter-Prototyp - M10x1.50 ~DIN 371 4 Flute 6HX Bottoming Spiral Flute Tap - High Speed Steel, Hardlube Finish, 100mm OAL, Right Hand Flute, Right Hand Thread, 8.430, Series EP2051352
Item #: 47332515
Brand: Walter-Prototyp
Model #: 6826932
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Hardlube is a multi-layered coating composed of titanium aluminum nitride and tungsten carbide/carbon (TiAIN/WC/C). It is stronger and more wear resistant than TIAlN. It is commonly used on steel, stainless steel, nickel and cobalt.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M10x1.50 |
| Chamfer | Bottoming |
| Class of Fit | 6HX |
| Thread Limit | 8.430 |
| Number of Flutes | 4 |
| Material | High Speed Steel |
| Finish/Coating | Hardlube |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | Through Coolant |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Helix Angle | 45 |
| Thread Standard | ~DIN 371 |
| Thread Length (Decimal Inch) | 0.5910 |
| Thread Length (mm) | 15.00 |
| Series/List | EP2051352 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Shank Diameter (mm) | 10.00 |
| Square Length (Inch) | 0.4331 |
| Material Application | K, M, N, P |
