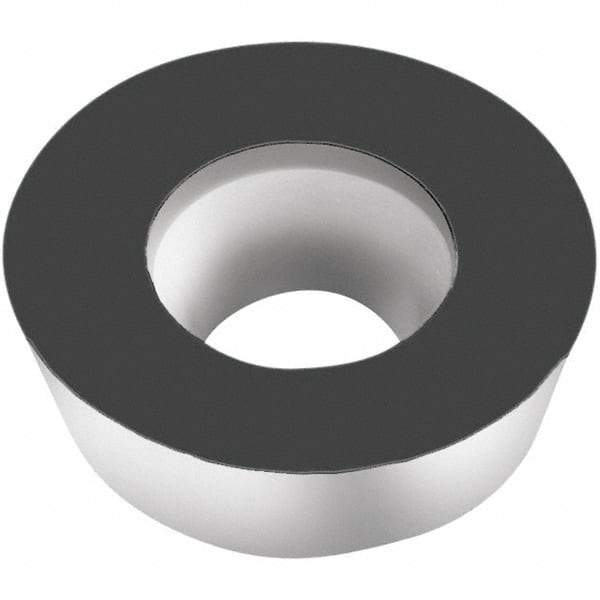

Walter - A57 Grade WKP25S Milling Insert - 1.59mm Thick, 5mm Inscribed Circle, 2.5mm Corner Radius
Item #: 47328729
Brand: Walter
Model #: 7028046
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP25S |
| Length (mm) | 0.00 |
| Length (Decimal Inch) | 0.0000 |
| Inscribed Circle (mm) | 5.00 |
| Inscribed Circle (Decimal Inch) | 0.1970 |
| Thickness (mm) | 1.59 |
| Thickness (Decimal Inch) | 0.0630 |
| Corner Radius (Decimal Inch) | 0.0980 |
| Corner Radius (mm) | 2.50 |
| Hole Diameter (mm) | 2.15 |
| Hole Diameter (Decimal Inch) | 0.0850 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | A57 |
| Maximum Depth of Cut (mm) | 0.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0000 |
| Manufacturers Catalog Number | RDHX0501M0-A57 WKP25S |
